Destil wall framed formwork is a new system for efficient concrete construction technology and is now available.
DESTIL offers increased efficiency and reduces costs through the following:

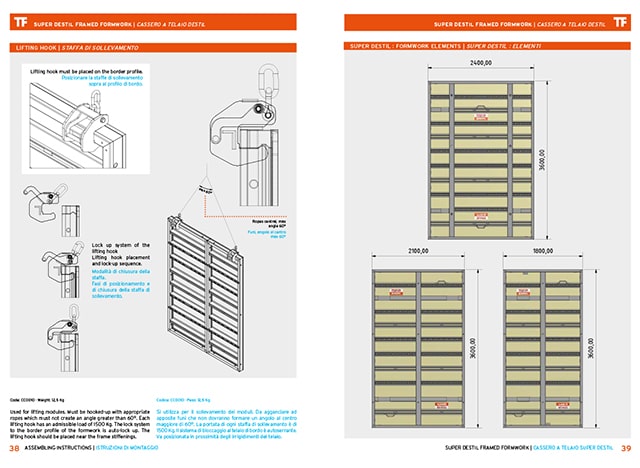

PANEL HEIGHTS
A wall formwork with wide modularity available in heights of 300 cm, 120 cm and 330 cm, 270 cm and 135 cm. Wide range for every sizes of steel frame.
STEEL
Highly resisting Steel, type S315MC.
Frame depth: 123 mm
Thickness: 2,50 mm
Finishing technique: hot Zinc-coat
MAX CONCRETE PRESSURE
80 kN/m2 USING D 20 Tie-rods
HIGH-QUALITY PLYWOOD
18 mm birch quality-plywood or a plastic-coated plywood that lives 3 times longer.
HIGH COMPATIBILITY
The formworks are perfectly compatible with other formwork systems currently leading the market.
