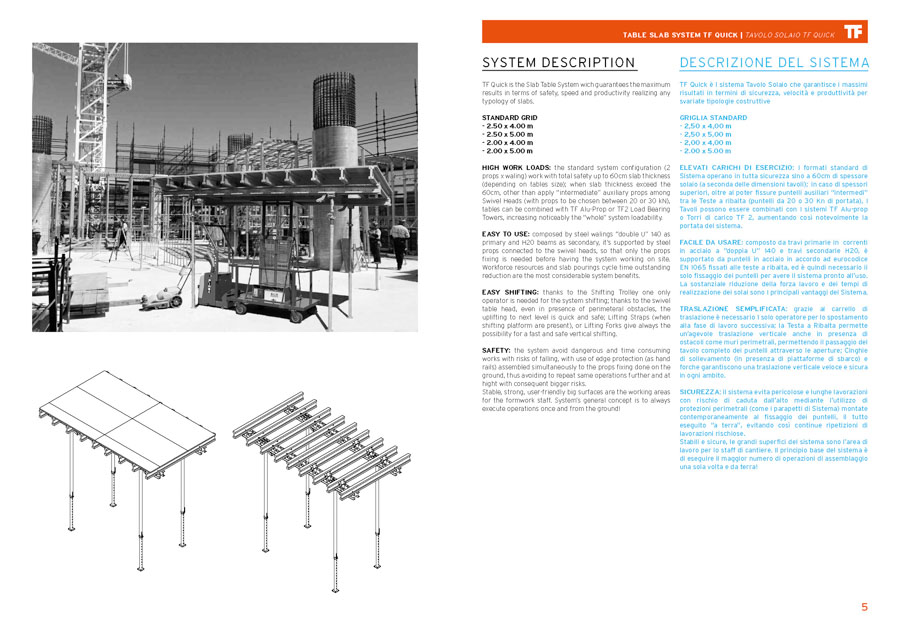

TF Quick is the Slab Table System wich guarantees the maximum results in terms of safety, speed and productivity realizing any typology of slabs.
STANDARD GRID
- 2.50 x 4.00 m
- 2.50 x 5.00 m
- 2.00 x 4.00 m
- 2.00 x 5.00 m
HIGH WORK LOADS:
the standard system configuration (2
props x waling) work with total safety up to 60cm slab thickness
(depending on tables size); when slab thickness exceed the
60cm, other than apply “intermediate” auxiliary props among
Swivel Heads (with props to be chosen between 20 or 30 kN),
tables can be combined with TF Alu-Prop or TF2 Load Bearing
Towers, increasing noticeably the “whole” system loadability.
EASY TO USE:

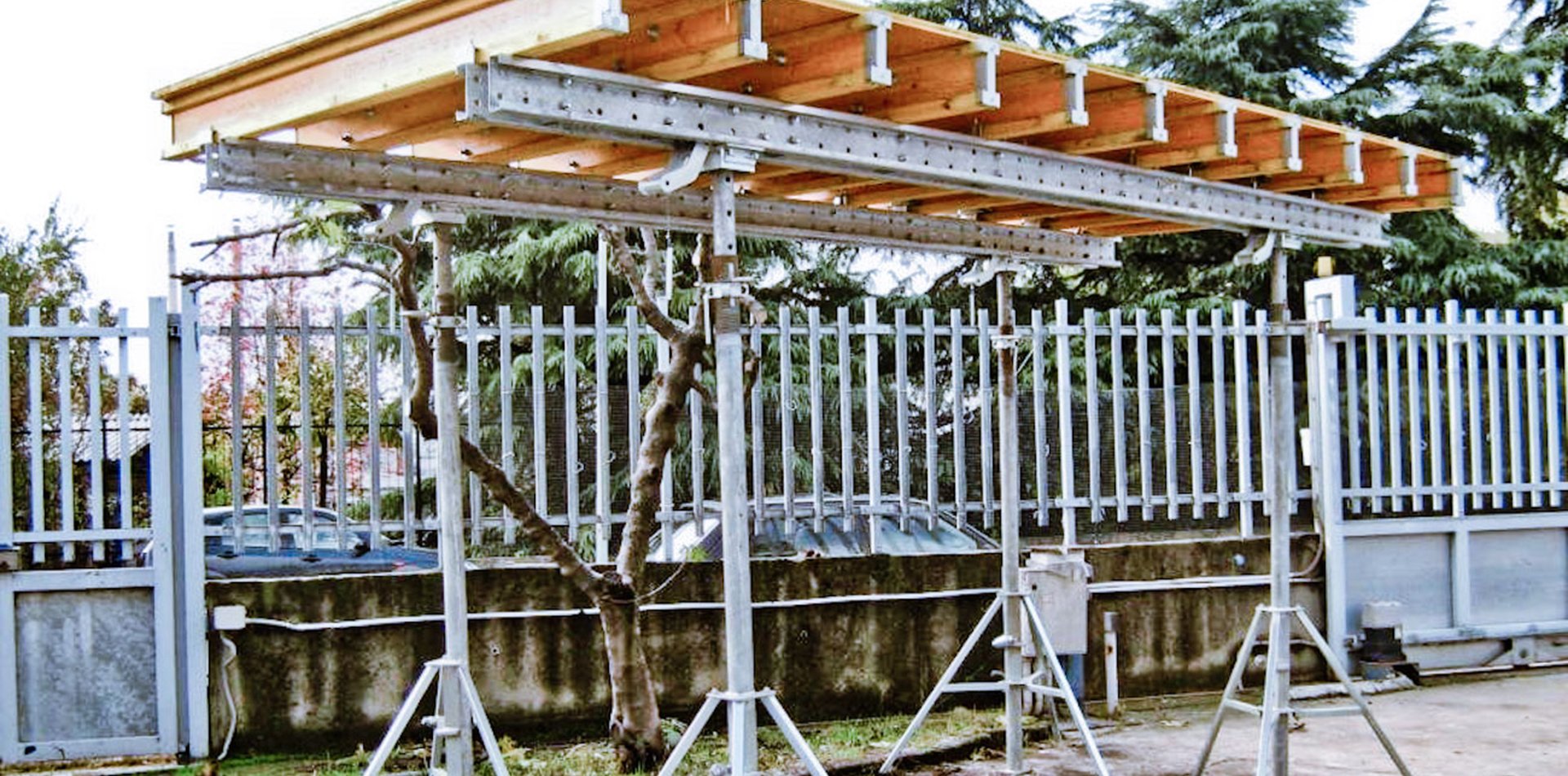

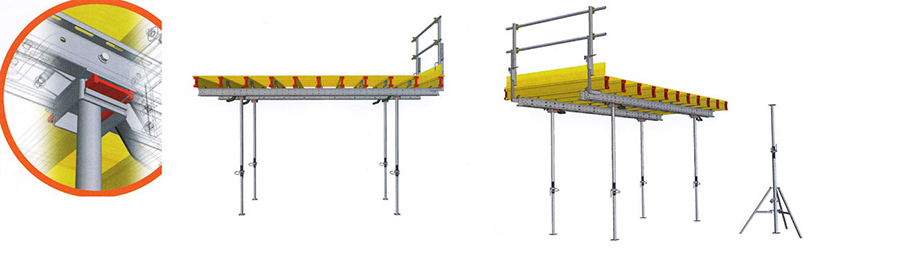

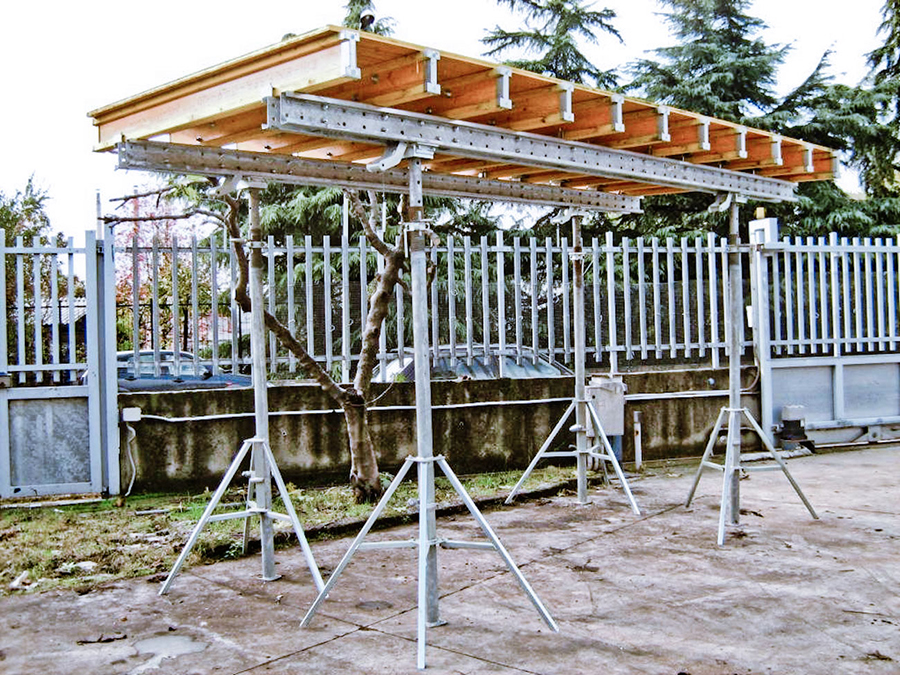

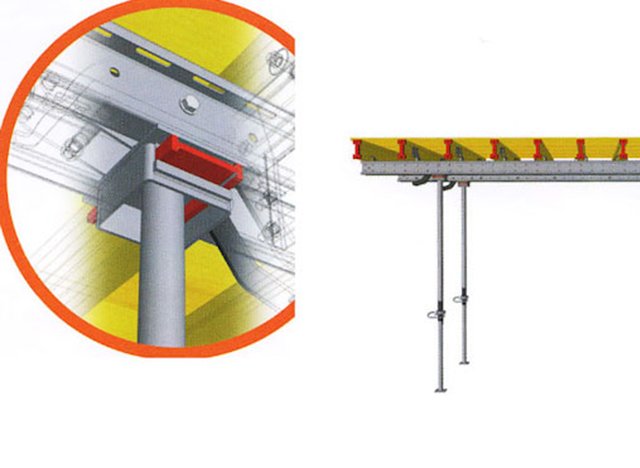

composed by steel walings “double U” 140 as
primary and H20 beams as secondary, it’s supported by steel
props connected to the swivel heads, so that only the props
fixing is needed before having the system working on site.
Workforce resources and slab pourings cycle time outstanding
reduction are the most considerable system benefits.
EASY SHIFTING:

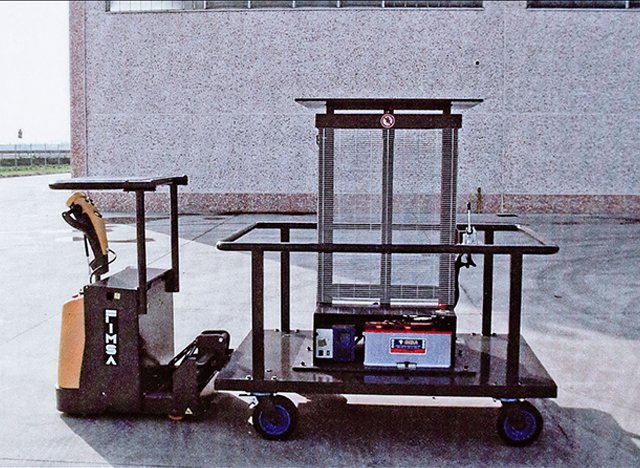

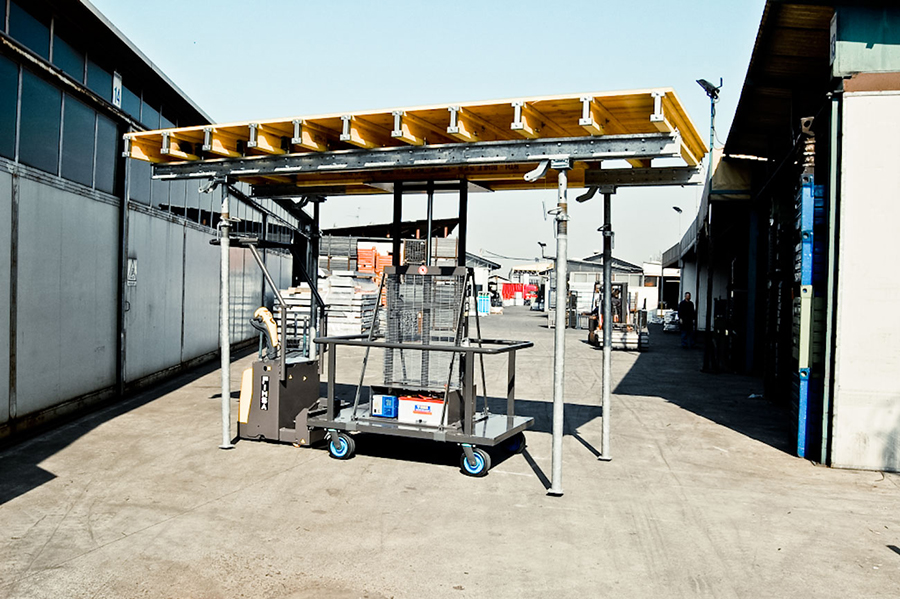

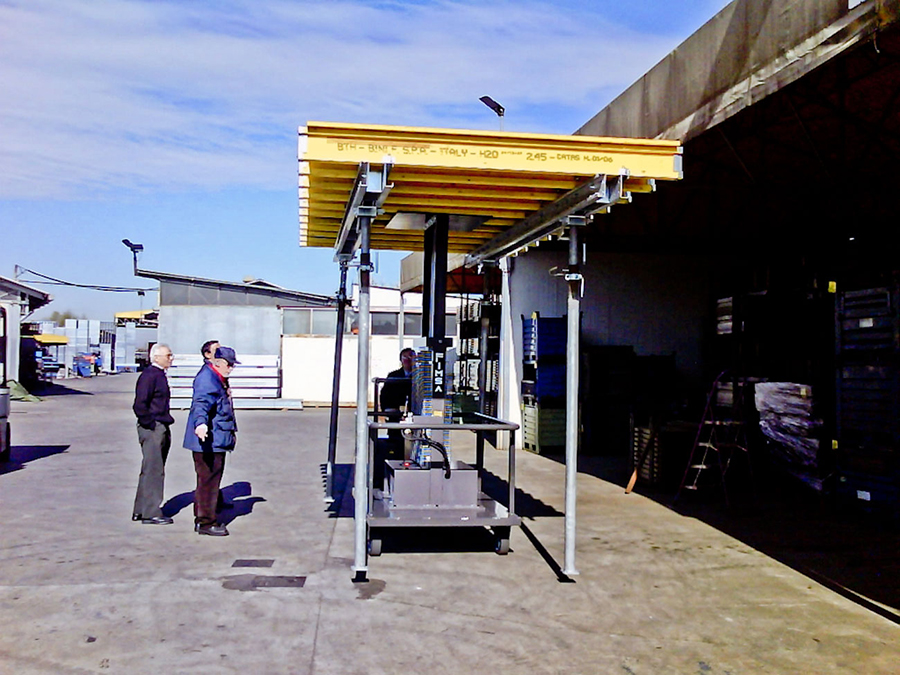

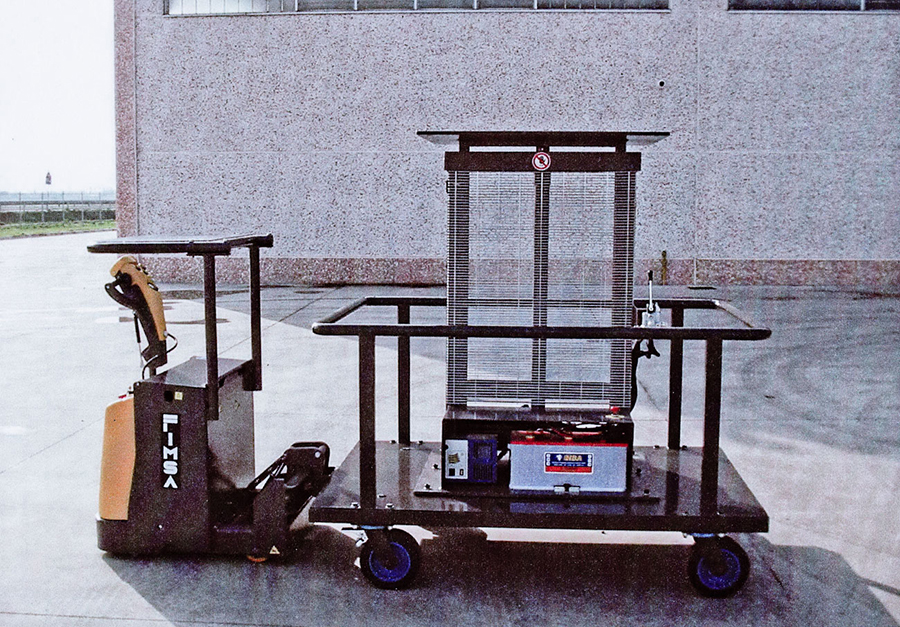

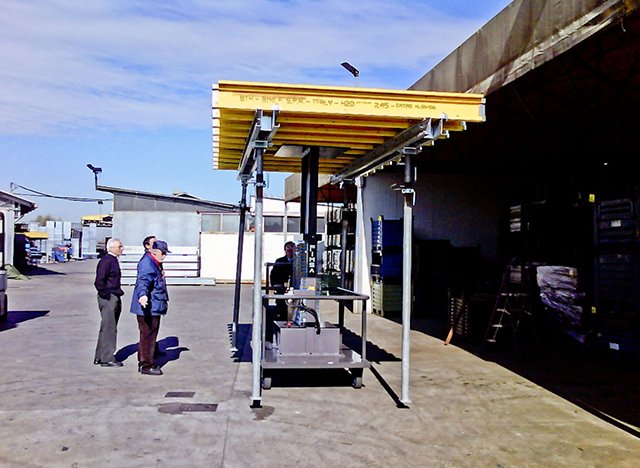

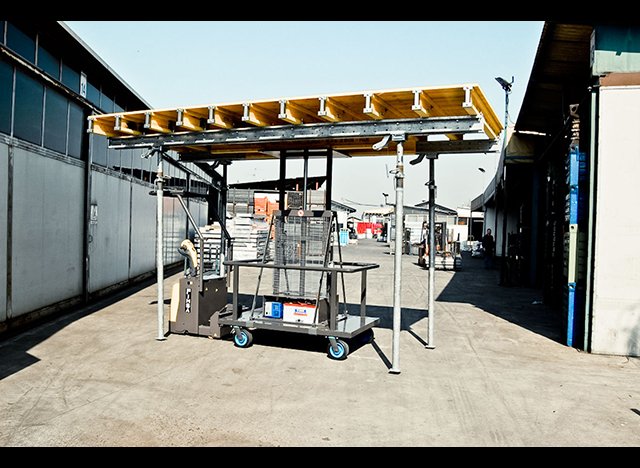

thanks to the Shifting Trolley one only
operator is needed for the system shifting; thanks to the swivel
table head, even in presence of perimeteral obstacles, the

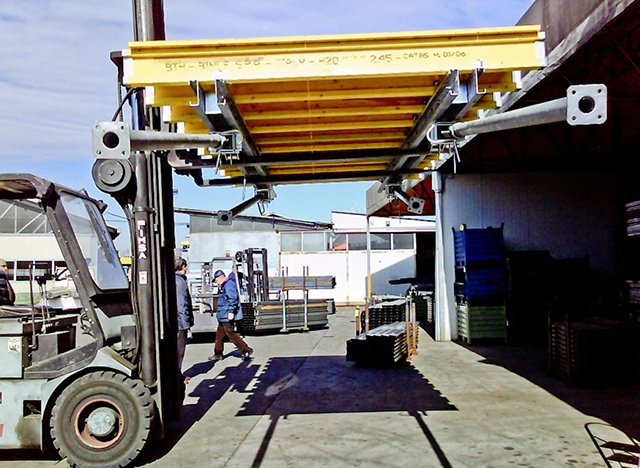

uplifting to next level is quick and safe; Lifting Straps (when

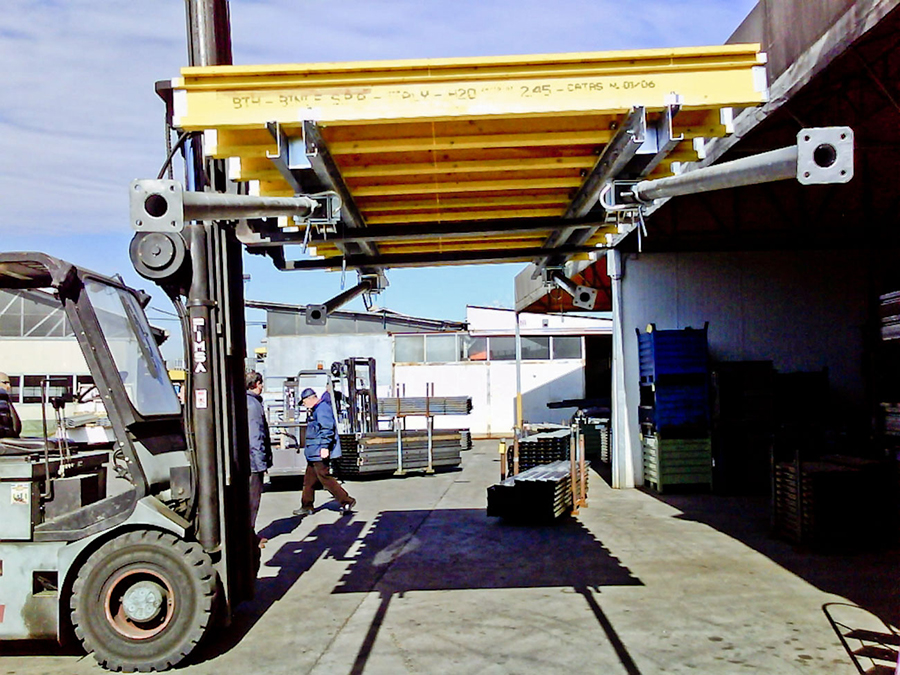

shifting platform are present), or Lifting Forks give always the
possibility for a fast and safe vertical shifting.
SAFETY:
the system avoid dangerous and time consuming
works with risks of falling, with use of edge protection (as hand
rails) assembled simultaneously to the props fixing done on the
ground, thus avoiding to repeat same operations further and at
hight with consequent bigger risks.
Stable, strong, user-friendly big surfaces are the working areas
for the formwork staff. System’s general concept is to always
execute operations once and from the ground!
