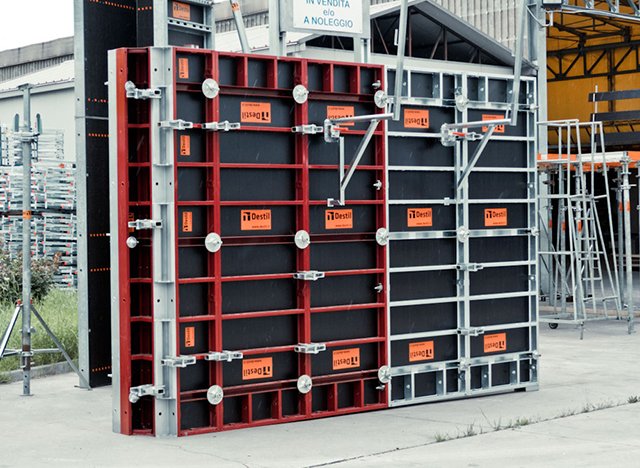

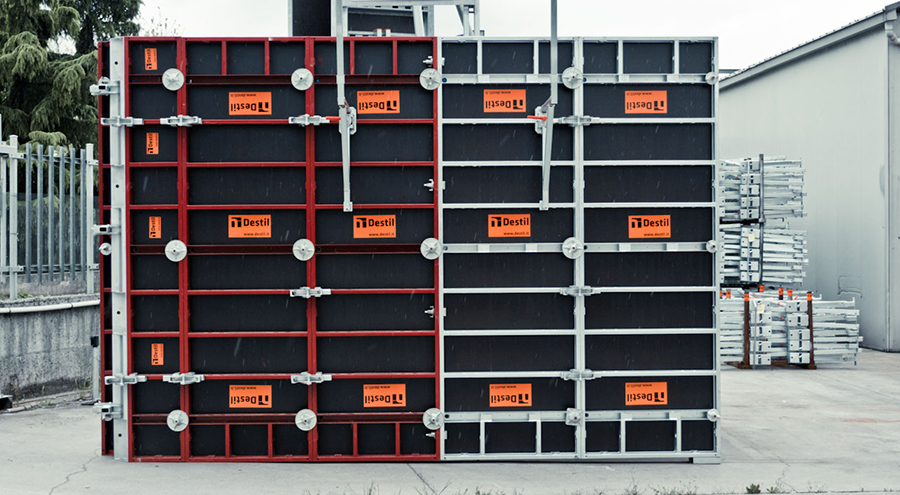

Destil 2 is a light formwork, perfect for residential projects. Modules have widths from 0.30 to 1.00 m and heights of 3.00 and 1.50 m.
The system offers high performance, with an allowable concrete pressure of 60 kN/m2, thanks to hot-dip galvanized high strength S355MC steel and 18mm thick finnish birch plywood with a 220 g/sqm phenolic coating or plastic coating on request.
As per Destil, Destil 2 solves brilliantly any vertical manufact as walls and columns.
PANEL HEIGHTS:
A wall formwork with wildest modularity available in heights of 330 cm, 300 cm and 150 cm. Wide
range for every sizes of steel frame.
STEEL:
highly resisting Steel, type S355MC.
Frame depth: 123 mm
Thickness: 2,00 mm
Finishing technique: hot Zinc-coat
MAX CONCRETE PRESSURE:
60 kN/m2
HIGH-QUALITY PLYWOOD:
18 mm birch quality-plywood or a plastic-coated plywood that lives 3 times longer.

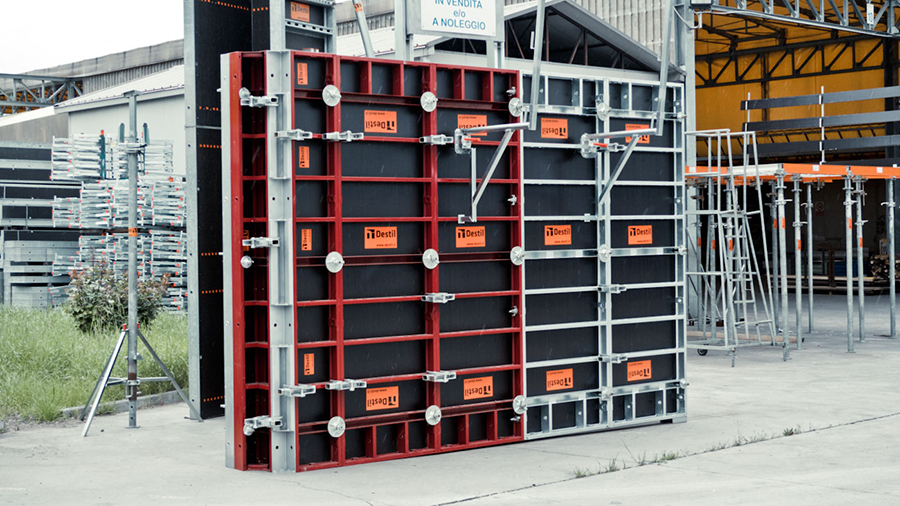

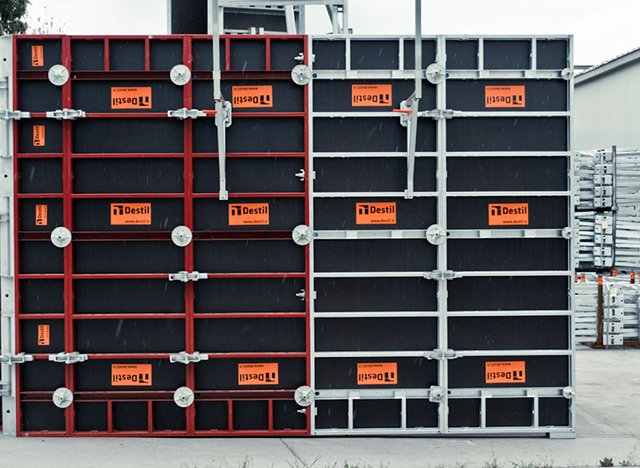

HIGH COMPATIBILITY:
the formworks are perfectly compatible with other formwork systems currently leading
the market such as Doka Framax.
NEW CONCRETE FINISHES:
Thanks to an innovative steel profile, we have improved visible concrete surfaces. Destil
Formwork for Works of Art.
LONG LIFE:
frames and profiles are hot deep galvanized both inside and outside.
LOW DENSITY OF TIE RODS:
you need only 3 tie rods for concreting heights 300 cm panel, decreasing the assembly
times.
LARGE-AREA CRANE OPERATION:
versatile, quickly assembled and movable in large units. Destil 2 is used on
both small and large construction sites.

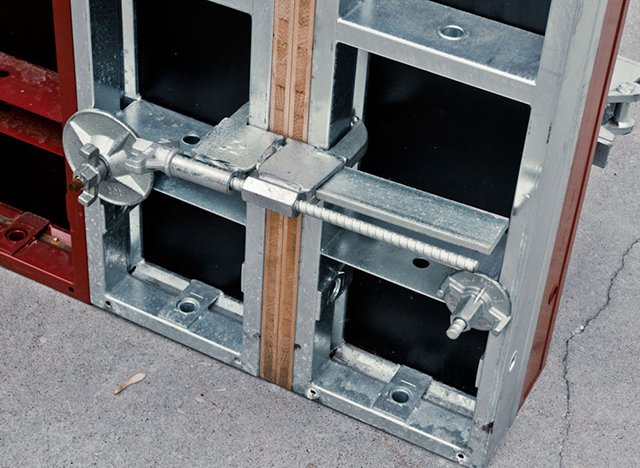

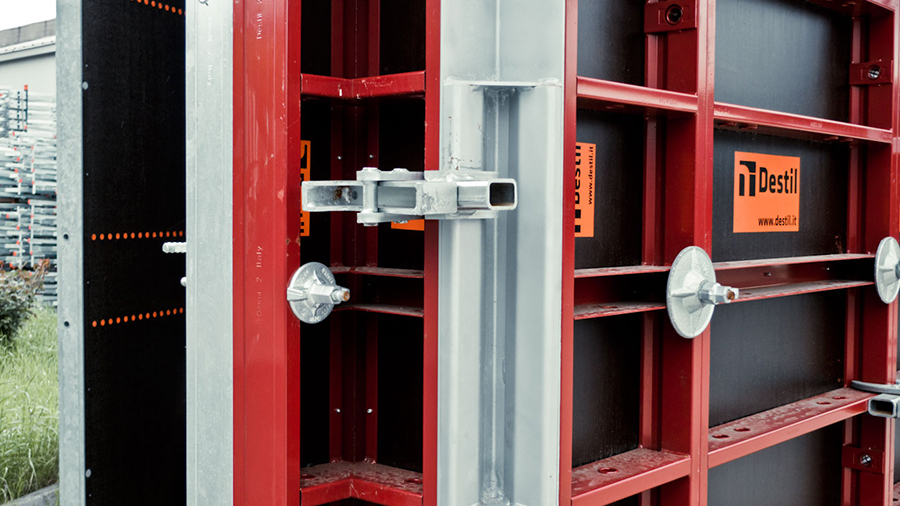

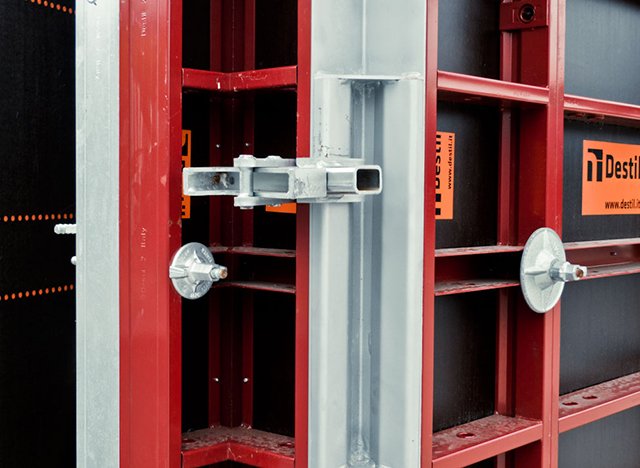

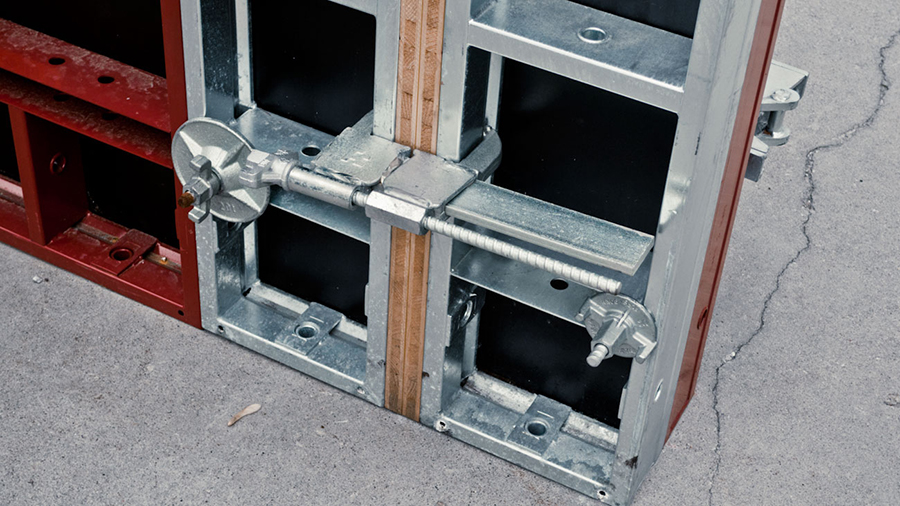

FAST CONNECTION OF PANEL:
particular geometry of steel profile allows the connection of different steel frame
modules in any position by Quick-acting clamp and Multi-
function clamp.

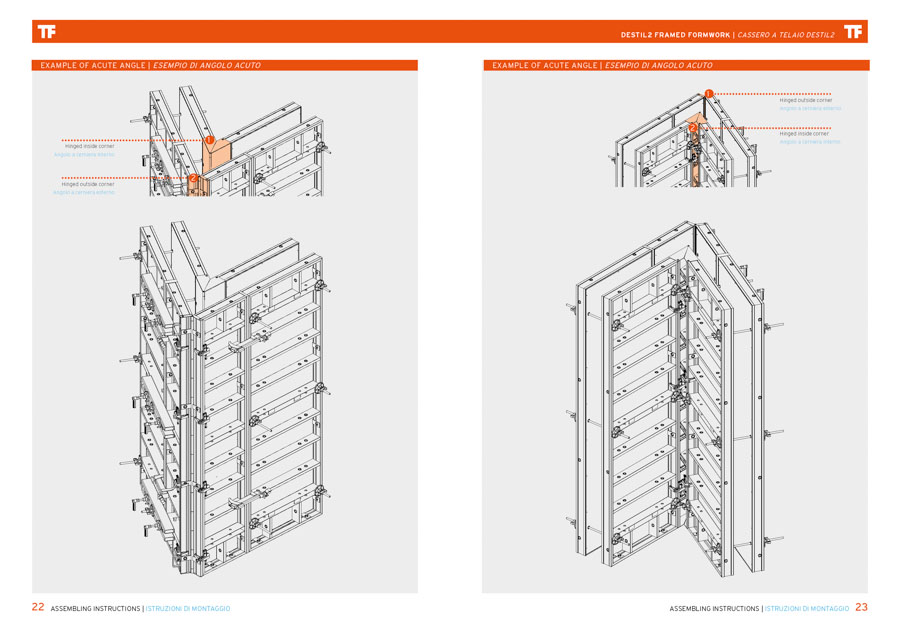

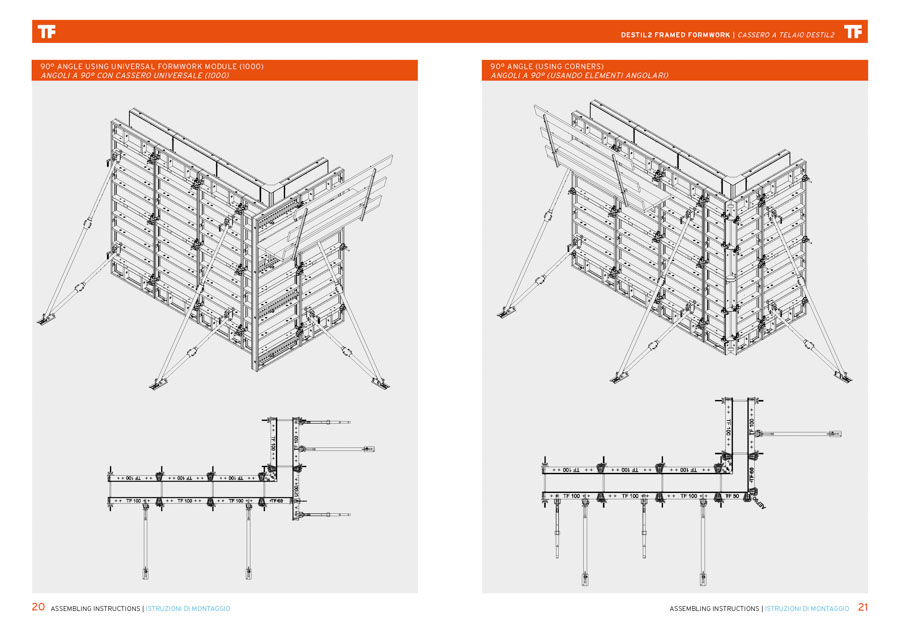

CORNERS AND CIRCULAR WALLS:
all corners, articulated corners and panels for circular walls or columns are available.
TECHNICAL ASSISTENCE:
ensures technical assistance pre and post-selling.

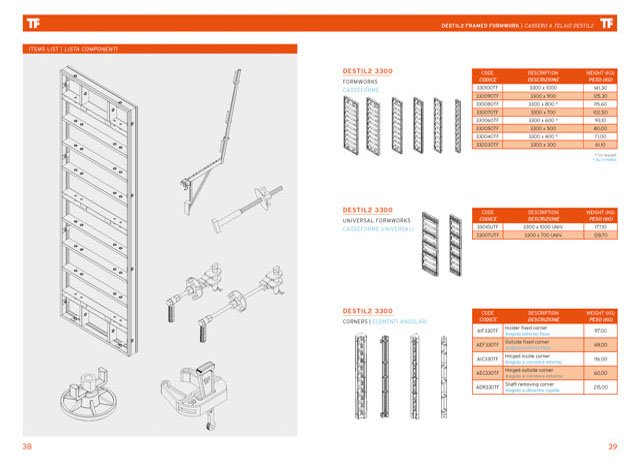

ACCESSORIES:
full range and interchangeability of all accessories.
SPEED:
fast system for Walls, Columns and Slabs. Rapid planting, removing and moving on-site of formwork. The construction time is reduced by 25% compared to conventional methods.
REUTILIZATION:
high number of possible reutilization.
This steel frame system allows the construction of the
following:
- Vertical formworks
- Formworks supported by shoring system
- Climbing formworks suitable for towers and bridge piers
- Dam formworks
- Formworks suitable for construction of elevator shaft
- Single-faced concreting formworks
- Tunnel formworks.
